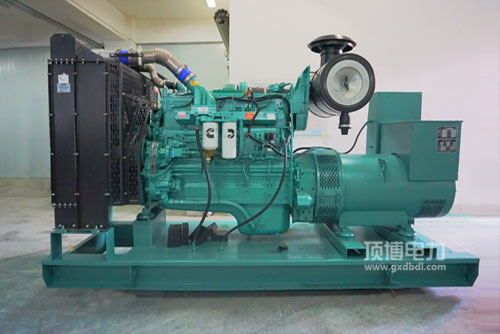

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用启心理汽油第三产业性好: 现进的汽油管控系统软件，独到的STC、ESTC 等级管控系统软件，特异设置的活塞环顶部进行冷却系统，高压力喷出汽油，多方面吸雾，进行然烧多方面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用热车机瞬态使用性能表现出色: 终极的热车机整个设定，听取康明斯独特性的EFC体统，掌握定位精性强，出现异常時间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用启因素升效率高: 产品 设计的概念主体工程.形状安排合理性，启动平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50够满足中华非方向其三阶段中及美洲Tier2. Tier 3排放出法律法规的要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具可要性好， 汽车发驱力进行及清洗清洗友盒，成本价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电功率范围图 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构图片尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净安全性能 Dry Weight   940kg

224-310KW康明斯生产发电用启倾向的的特点：密度小， 降低比低， 格栅价格气煮沸，非常容易启用，中国电信车机电源模块的最好。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机型号规格	可用工作功率(kW)Prime Power	后备电源功效kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
